Jiajun Fan

ICML 2022

Generalized Data Distribution Iteration

At a glance

The paper in four results.

Deep reinforcement learning agents tend to learn fast or end strong, rarely both. What if both come down to one thing: which data the agent learns from? GDI learns which behaviors should collect its data, and sets a new state of the art on Atari with a fraction of the data.

  • General.DQN, R2D2, Agent57 and others are special cases of one loop
  • Proven.a proof that it is superior to generalized policy iteration
  • Lean.every Atari experiment ran on one GPU

The problem

Top agents end strong by trying to see everything, and pay for it in data.

Agent57 and Go-Explore try to visit every unseen situation. They ignore which data is worth having, so many of their trials collect data of little value.

Collect everything

try to visit every unseen situation, as Agent57 and Go-Explore do

Many trials, and much of what they bring back has little value.

  • Reaches unseen situations
  • Avoids low-value repeats

Choose the data

learn which behaviors collect it, as GDI does

Fewer trials, spent where the data is worth having.

  • Reaches unseen situations
  • Avoids low-value repeats
Schematic of the paper’s argument: nothing in it is measured.

When interactions are limited, which data you collect matters as much as how much.

The idea One lever

Learning fast and ending strong are one problem: the distribution of the training data.

Control which behavior policies collect the data, and you control both.

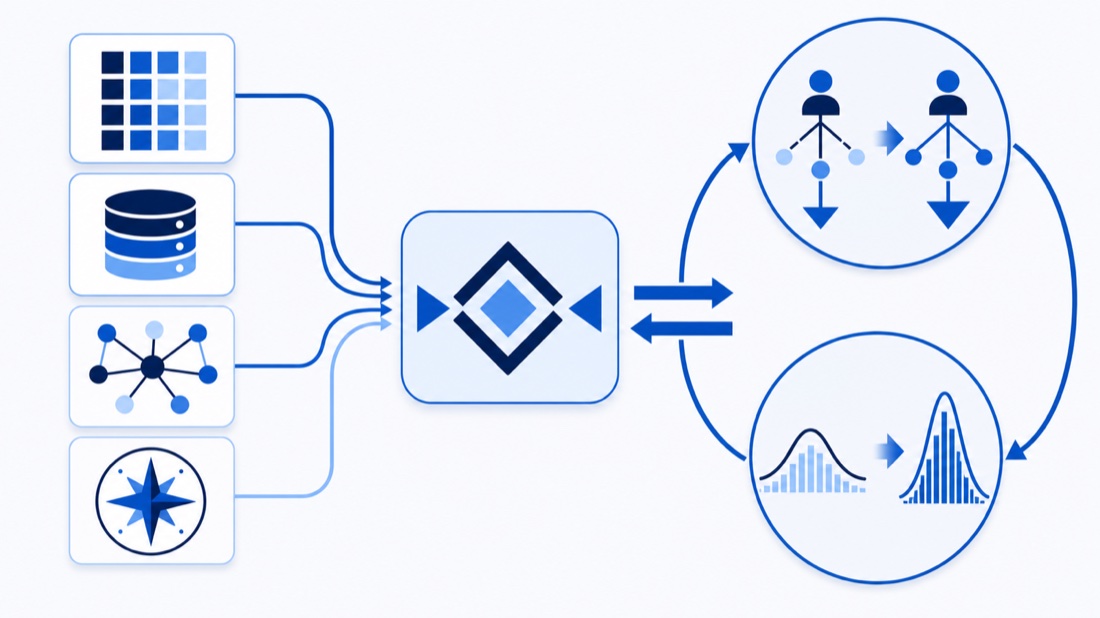

How it works

One loop with two updates: one for the policy, one for the data.

Generalized policy iteration updates the agent from its data. GDI adds a second update for which behavior policies collect that data. Switch it off, or shrink the space of behaviors, and familiar algorithms appear.

Seen through GDIseven algorithms, one loop

The same loop with different settings

Schematic of the paper’s operator view. Blue: the RL update of the learner. Green: the update of the data distribution, done by a meta-controller; dashed when an algorithm has none.

The loop stays the same. What changes is whether, and how, the data is chosen.

The evidence Finding 01

It sets a new state of the art on Atari.

Across the 57 games of the Arcade Learning Environment, GDI reaches the highest mean human-normalized score of every agent compared.

Mean human-normalized score (HNS) over 57 Atari games, from the paper’s full comparison table. Green: GDI. Blue: Agent57. Right: frames each agent trained on.

Ending strong no longer requires collecting everything.

The evidence Finding 02

It needs 500 times less data than Agent57.

It beats Agent57’s mean score and breaks more human world records, on a five-hundredth of the experience.

Training frames, equivalent human playtime and human world records broken (out of 57 games), from the paper’s comparison tables.

Choosing the data turned decades of play into weeks.

The evidence Finding 03

Choosing the data is the lever.

Fix the behavior policy to a single point, so nothing steers the data, and the same agent falls far behind.

Same space of behaviors, same RL update, same hyperparameters. The only change: no meta-controller, so the behavior policy keeps one fixed index and the data distribution is never optimized.

The theory agreesWith the same RL update, updating the data distribution never lowers the target of the next update (Theorem 1), nor its expected improvement under natural gradients (Theorem 2), under the paper’s assumptions.

Normalized by GDI-I³ (dashed line at 1). Bars as drawn in the paper’s ablation figure, which prints no values.

Collecting data is not enough. Choosing it is what works.

The evidence Finding 04

A richer space of behaviors sees more of the game.

Shrink the behaviors to one temperature knob and the agent scores lower; build them from two separate networks and it scores higher.

t-SNE of Seaquest states: the states visited by GDI-I3 are highlighted in red and spread over more of the map

GDI-I³: three knobsIts visited states, in red, spread over more of the map.

t-SNE of the same Seaquest states: the states visited by GDI-I1 are highlighted in red and gather in a smaller region

GDI-I¹: one knobIts visited states, in red, gather in a smaller region.

Left: normalized by GDI-I³, as drawn in the paper’s ablation figure. Right: the paper’s t-SNE of 6k Seaquest states from three stages of training.

More kinds of behavior give richer data, and richer data gives a stronger agent.

Why it matters

The data an agent learns from is not a given. It is a lever.

GDI turns the choice of behavior policies into a learnable part of reinforcement learning, with a framework, a proof and a recipe.

What this opens up

One loop, many algorithms

DQN, R2D2, LASER, PBT, Agent57 and Go-Explore become special cases, which makes each easier to understand.

A guarantee, not a heuristic

With a few assumptions, optimizing the data distribution is proven never to hurt the RL update it feeds.

Superhuman on a small budget

All of it on one GPU and one CPU, from the equivalent of weeks of human play.

The film

The story, as a short film.

Film poster: GDI, generalized data distribution iteration. A grid of behavior policies feeds a learner.

Opens the film page.

Cite

Cite the paper.

International Conference on Machine Learning (ICML 2022): PMLR · PDF · arXiv. An earlier version appeared at the AAAI-22 Workshop on Reinforcement Learning in Games.

@InProceedings{pmlr-v162-fan22c,
  title     = {Generalized Data Distribution Iteration},
  author    = {Fan, Jiajun and Xiao, Changnan},
  booktitle = {Proceedings of the 39th International Conference on Machine Learning},
  pages     = {6103--6184},
  year      = {2022},
  editor    = {Chaudhuri, Kamalika and Jegelka, Stefanie and Song, Le and Szepesvari, Csaba and Niu, Gang and Sabato, Sivan},
  volume    = {162},
  series    = {Proceedings of Machine Learning Research},
  month     = {17--23 Jul},
  publisher = {PMLR},
  pdf       = {https://proceedings.mlr.press/v162/fan22c/fan22c.pdf},
  url       = {https://proceedings.mlr.press/v162/fan22c.html}
}
