ORW-CFM-W2 — Flow Matching RLHF

TL;DR — RL fine-tuning of diffusion models is well-studied, but flow matching models (Stable Diffusion 3, Flux) remain underexplored due to unique challenges: no likelihood, policy collapse risk, high compute. ORW-CFM-W2 solves all three — online reward-weighting for alignment, Wasserstein-2 regularization for diversity, and a tractable bound that makes it efficient.

ORW-CFM-W2 Method Architecture — **Figure 1.** ORW-CFM-W2 architecture. Online reward-weighted fine-tuning guides the flow matching model toward high-reward regions, while Wasserstein-2 regularization (W2) prevents policy collapse and maintains generative diversity throughout training.

🚧 Why Flow Matching Is Hard to Fine-Tune

No Likelihood

Unlike diffusion models, flow matching has no tractable likelihood — standard KL regularization cannot be computed directly.

Policy Collapse

Without diversity constraints, reward maximization causes the model to collapse onto a few high-reward modes, losing generative quality.

No Human Data

Existing fine-tuning methods require expensive human-curated datasets or preference annotations. ORW-CFM-W2 needs neither.

⚙️ Three Key Contributions

Online Reward-Weighted Mechanism

Integrates RL into flow matching via reward weighting — guides the model to prioritize high-reward regions in data space, without requiring reward gradients or filtered datasets.

Wasserstein-2 Regularization

Derives a tractable upper bound for W2 distance in flow matching models — prevents policy collapse and maintains generation diversity throughout continuous optimization.

Unified RL Perspective

Establishes a connection between flow matching fine-tuning and traditional KL-regularized RL, enabling controllable reward-diversity trade-offs and deeper understanding of the learning behavior.

📊 Experiments

SD3

Successfully fine-tunes
Stable Diffusion 3

Human-collected data
required

✓

Spatial understanding
& compositional tasks

SOTA

Orders of magnitude
less data than baselines

Tasks: target image generation, image compression, text-image alignment. Consistently achieves optimal policy convergence while allowing controllable diversity-reward trade-offs.

🎨 Visual Results on SD3

Positional understanding results — **Figure 2.** Spatial/positional understanding. ORW-CFM-W2 enables SD3 to correctly handle complex positional prompts that the base model fails on.

Multi-baseline comparison — **Figure 3.** Comparison with multiple baselines on target image generation.

**Figure 4.** Multi-reward optimization across diverse prompts and reward signals.

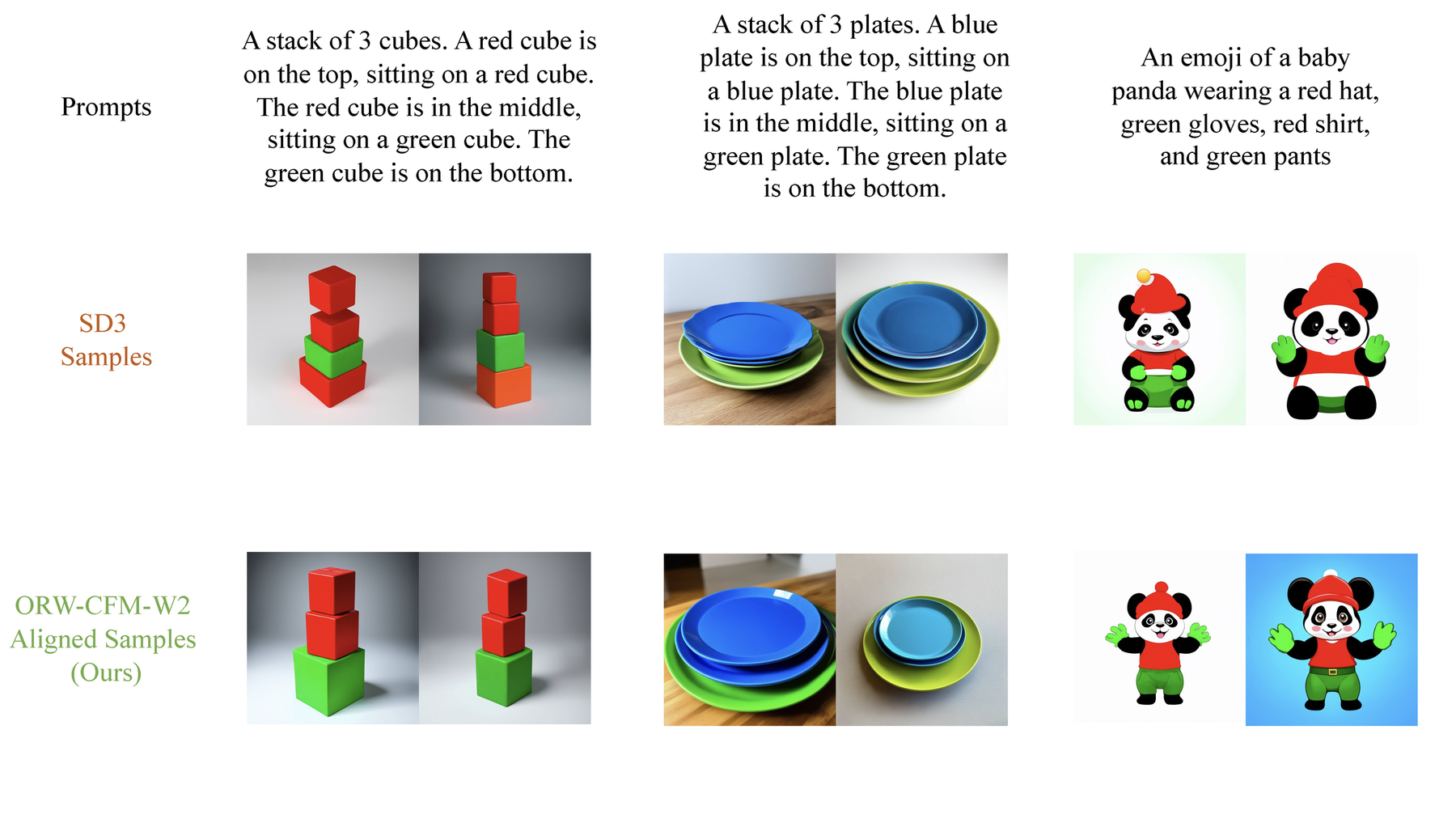

**Figure 5.** Semantic detail enhancement. Fine-tuned SD3 generates images with richer detail and better semantic correspondence.

🔗 Unified RL Framework

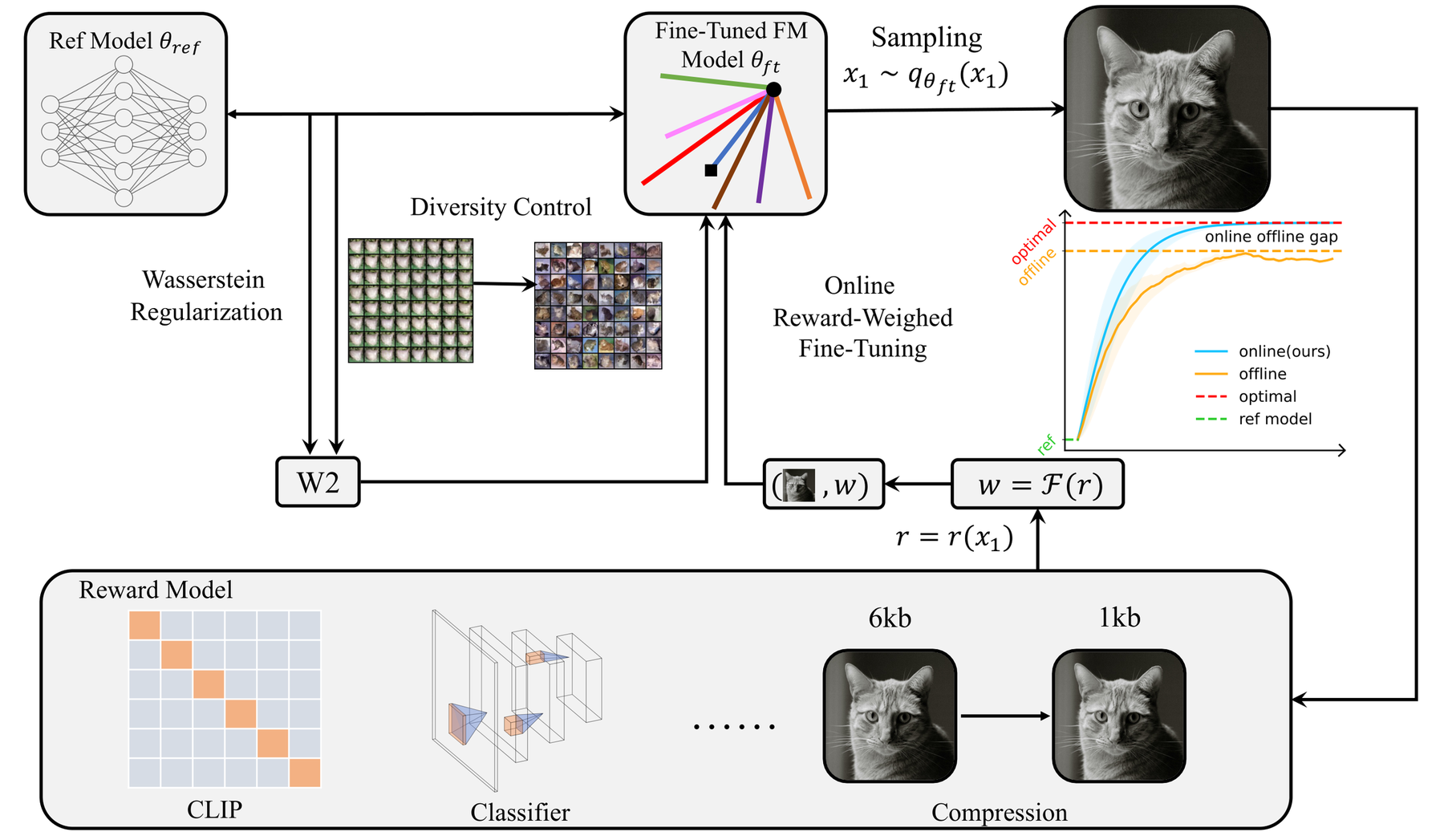

RL framework for flow matching — **Figure 6.** Unified RL perspective on flow matching fine-tuning. We establish a formal connection between flow matching optimization and KL-regularized reinforcement learning, providing theoretical grounding for reward-diversity trade-offs.

📉 Quantitative Analysis

Controlled experiments on MNIST and CIFAR demonstrate the reward-diversity trade-off controlled by the W2 regularization strength α:

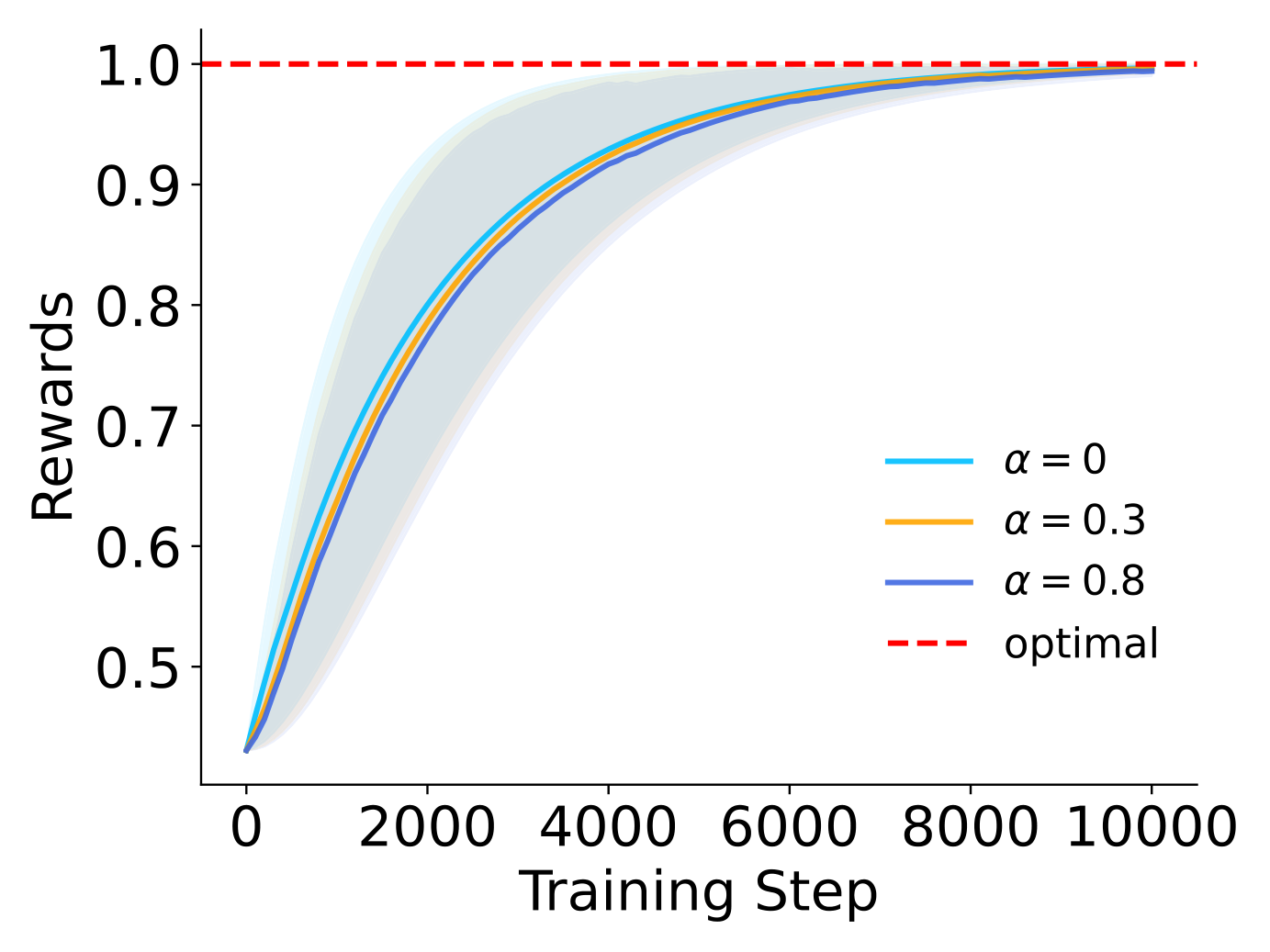

**Figure 7.** MNIST reward curves across different α values — higher α preserves more diversity.

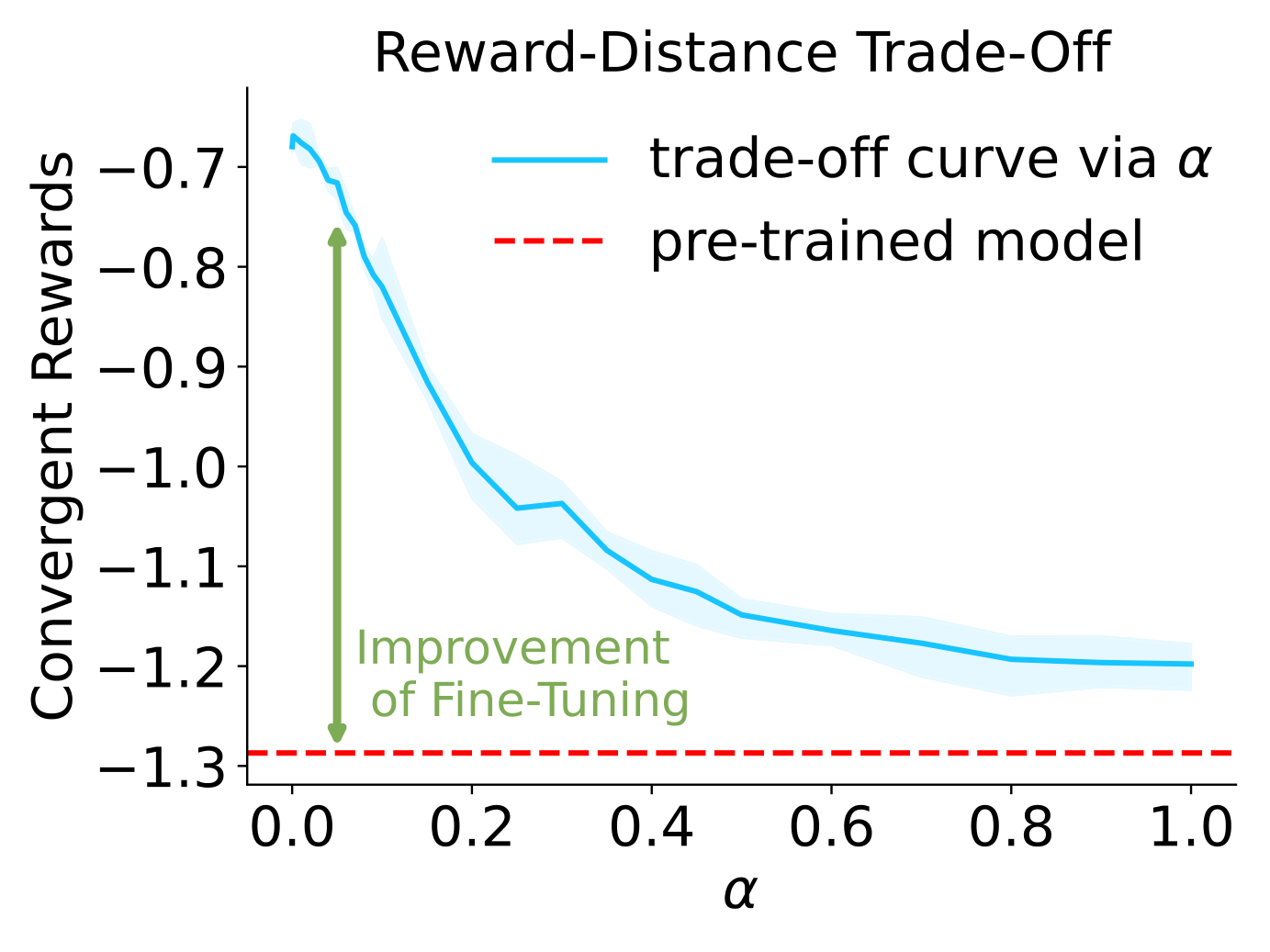

CIFAR reward tradeoff — **Figure 8.** CIFAR reward vs. W2 distance Pareto front — smooth, controllable trade-off.

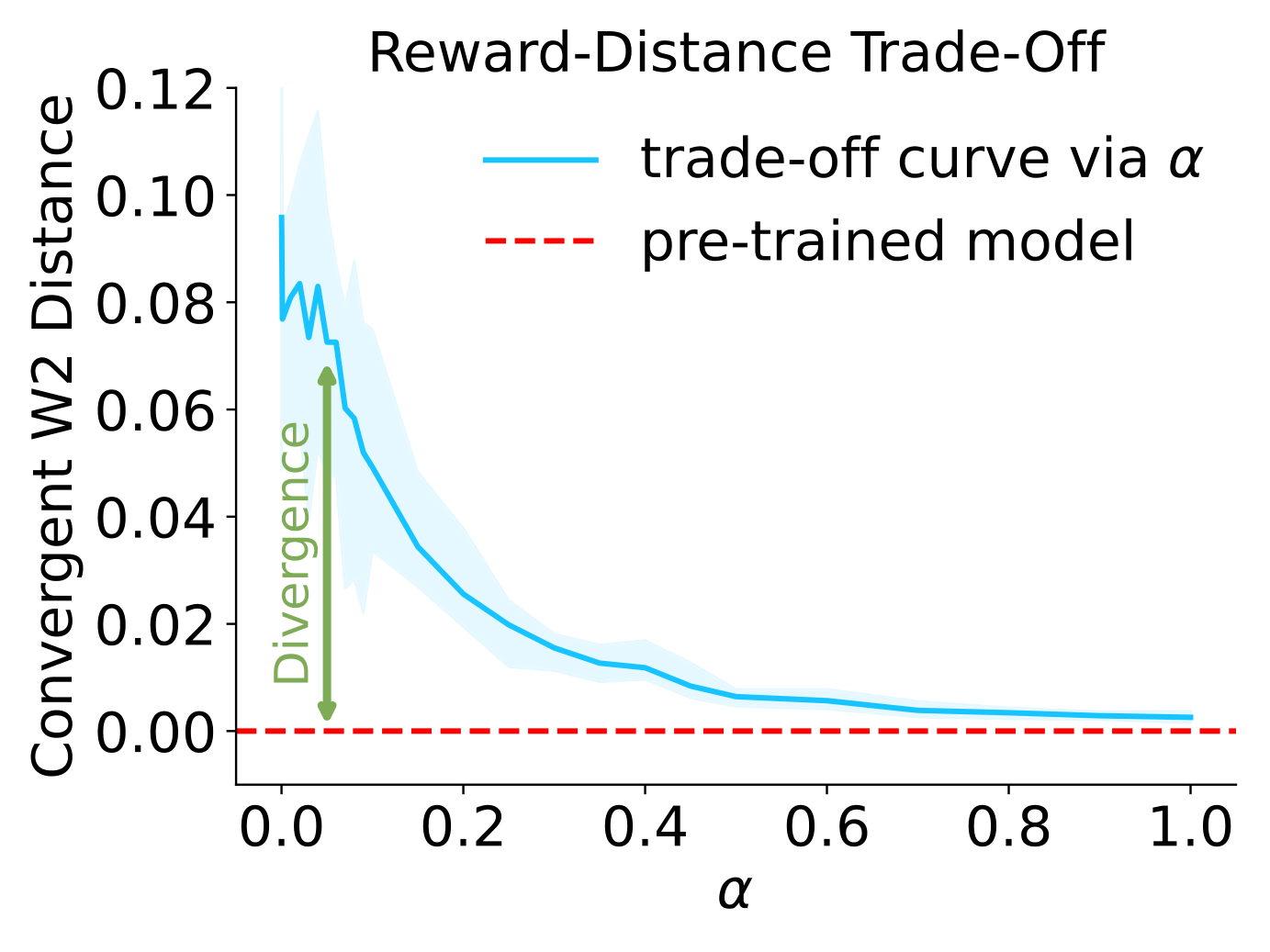

CIFAR W2 tradeoff — **Figure 9.** W2 distance evolution during training — regularization effectively prevents mode collapse.

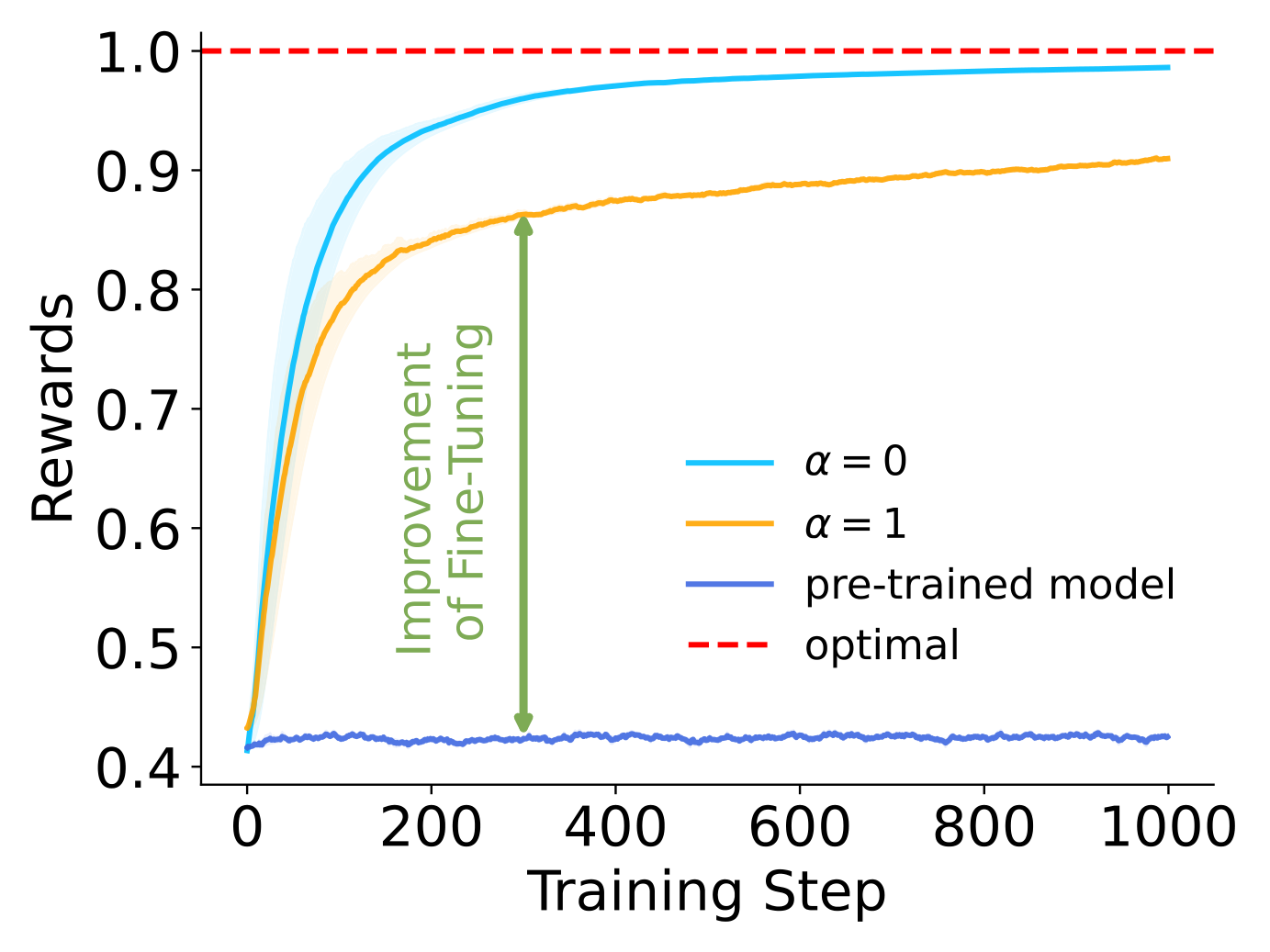

CIFAR text reward — **Figure 10.** Text-conditional CIFAR: reward improvement with controlled diversity preservation.

🎛️ Alpha Control: Reward–Diversity Knob

The regularization strength α provides a smooth knob between pure reward maximization (α=0) and full diversity preservation (α=1):

α=0 — **α = 0**
Pure reward (mode collapse)

α=0.3 — **α = 0.3**
Balanced (recommended)

α=0.8 — **α = 0.8**
High diversity preserved

α=0.5 — **α = 0.5**
Balanced fine-tuning

α=1.0 — **α = 1.0**
Full reward optimization

📅 Publication Journey

Oct 2024

Submitted to ICLR 2025

Submitted to The Thirteenth International Conference on Learning Representations.

Feb 2025

✅ Accepted at ICLR 2025 (Poster)

Accepted as a poster. OpenReview

Apr 2025

Presented at ICLR 2025 · Singapore

📖 BibTeX

@inproceedings{fan2025online,
  title={Online Reward-Weighted Fine-Tuning of Flow Matching
         with Wasserstein Regularization},
  author={Jiajun Fan and Shuaike Shen and Chaoran Cheng
          and Yuxin Chen and Chumeng Liang and Ge Liu},
  booktitle={The Thirteenth International Conference on
             Learning Representations},
  year={2025},
  url={https://openreview.net/forum?id=2IoFFexvuw}
}

Online Reward-Weighted Fine-Tuning of Flow Matching with Wasserstein Regularization
